Products & Services | Diamond & CBN Tooling
Products & Services
Diatech Industries manufactures a full range of electroplated diamond and CBN (Cubic Boron Nitride) tooling, along with diamond grinding paste and lapping compound, made to precise grit and micron specifications for precision engineering, tool-making, and manufacturing applications. We supply workshops across South Africa working with tungsten carbide, hardened steel, and other hard materials.
Our range covers:
- Internal grinders
- Ripping and polishing pins
- CBN profile wheels
- Diamond needle files
- Diamond paste for grinding, lapping, and polishing
Below is our standard product range. Custom sizes, angles, and grit combinations are available on request (subject to minimum order quantities).
Product Range
Internal Grinders
- 6mm shank with 6, 8, 10, 12mm head
- 3mm, 4mm, 5mm shank and head
- Grit sizes: D151, D126, D91, D64
Ripping Pins / Polishing Pins
- 3mm, 6mm, 8mm (6mm shank)
- Angles available: 6°, 8°, 10°, 12°, 14°, 16°, 18°, 20°
- Grit sizes: D151, D126, D91, D64
CBN Profile Wheels
- Hook angle 10/30, 127mm
- Other profiles and diameters available on request
- Grit sizes: B181, B126
Diamond Files
- Diamond needle files, 3mm/4mm × 160mm long
- Shapes: half round, triangular, round, pillar, flat, knife, square
- Grit sizes: D126, D91
Diamond Paste / Grinding & Lapping Compound
- Also known as diamond grinding paste, lapping paste, or polishing compound (same product, formulated for grinding, lapping, and polishing applications)
- Oil or water soluble, low, medium, or high concentration
- Available in 5ml, 10ml, or 20ml syringes
- Micron sizes: 0–2, 2–4, 3–6, 4–8, 6–12, 10–20, 15–30, 30–60
Strip & Re-plate
- Worn electroplated tools stripped and re-plated, a cost-effective alternative to buying new
Custom Tools
- Bandsaw blades, diamond saw blades, diamond wheels, rock drill sharpeners, diamond profile wheels
Tooling We've Manufactured
From single prototypes to full production runs, every tool we manufacture is made to exact grit, micron, and dimensional specifications. Below is a look at some of the electroplated diamond and CBN tooling we've produced for customers across South Africa's precision engineering and manufacturing industries.

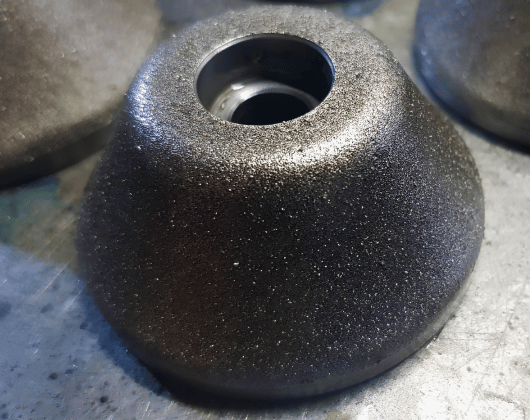

CBN Grinder

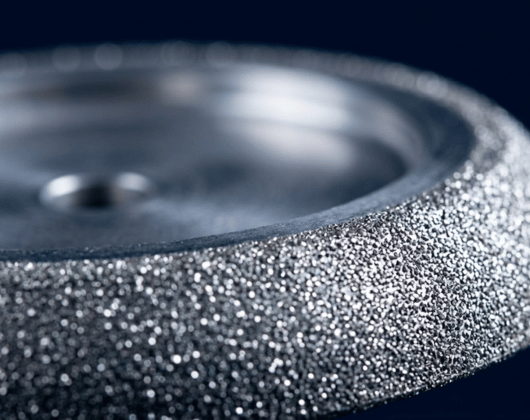

CBN Profile Wheel

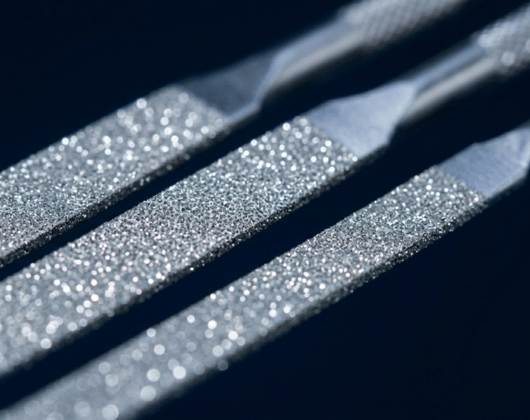

Diamond Needle Files

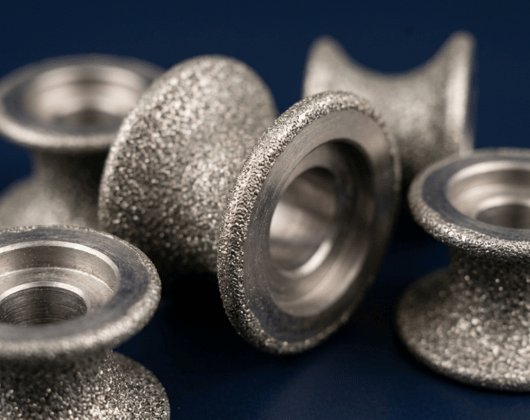

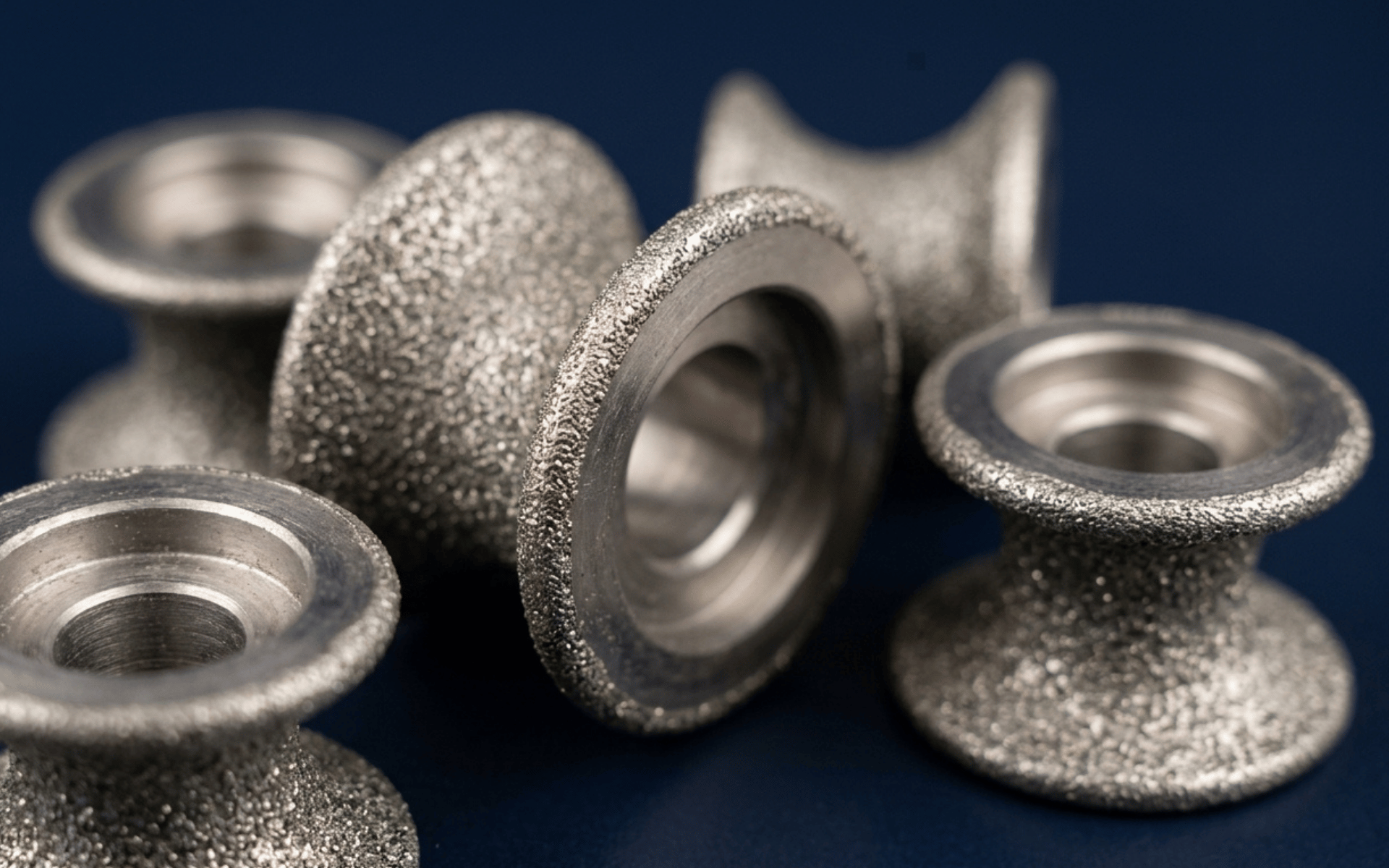

Diamond Wheels

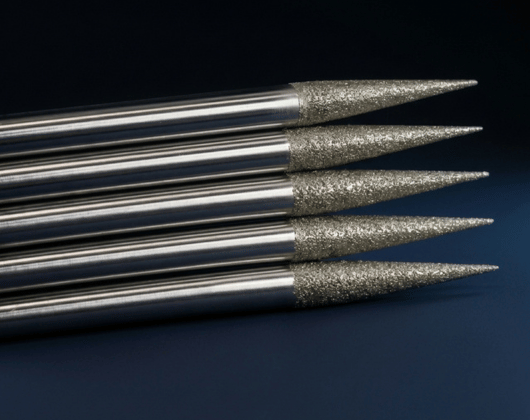

Ripping & Polishing Pins
What We Offer
Beyond our standard product range, Diatech Industries offers a full spectrum of tooling services, from initial design through to production and ongoing support. Whether you're starting with a rough idea, an existing drawing, or a worn tool that needs restoring, our team can take it from there.
Custom Tool Design
Tooling designed from scratch to solve a specific problem
Manufacture to Customer Drawings
Built precisely to your supplied specifications
Reverse Engineering
Replicating existing tools when drawings aren't available
Prototype Tooling
Single units or small test batches before full production
Production Runs
Small or large batch manufacturing, to consistent spec
Tool Refurbishment
Restoring worn tools to working condition
Electroplating & Re-plating
New coatings or re-coating for existing tool bodies
Technical Consultation
Guidance on grit, angle, and material selection
Industry-Specific Solutions
Tooling adapted for your industry's specific requirements
